2-5Laye Air Bubble Film Machine-3Screws

YIHAI MACHINERY Co., LTD is located in Pingyang,wenzhou ,zhejiang province . It Is a innovative enterprises integrating research and development, production. Specialized in the production of air bubble film machine, laminating machine, stretch film machine,film blowing machine, bag making machine, printing machine and plastic packing machinery. Products are approved by CE certification.And the products are exported to overseas.

Detail

Inquery

The machine is suitable for LDPE and LLDPE particles

The machine can produce 2-5 layers of bubble film (film + flat film + bubble + flat film + film + film =5 layers). The extruder is made up of the main extruder and the auxiliary extruder, with a total of 3 screws.

The main machine is designed by double screw rod, which can separate control the bottom layer and bubble layer, with the advantages of simple operation, fast speed, high output, beautiful appearance, etc., it can produce bubble film compound kraft paper, pearl cotton, PET aluminized film, co-extrusion film and other products. 16. The diameter of the bubble in this table is 6-30mm with the change of the flower roller. The products are waterproof, anti-pressure, anti-static, heat insulation and other functions, widely used in furniture, hardware, building materials, electronics, express packaging industry.

MODEL	MAX.WIDTH	DIA. SCREW	SCREW L:D	CAPACITY (kg/h)	SPEED	TOTAL OWER	CONSUMPTION POWER
YHPEG-1200B	1200mm	65/55/50	32：1	100-120	700-1800	110KW	40-50KW
YHPEG-1500B	1500mm	70/60/55	32：1	110-140	700-1800	120KW	45-60KW
YHPEG-1600B	1600mm	70/60/55	32：1	110-140	700-1800	135KW	45-60KW
YHPEG-1800B	1800mm	75/60/60	32：1	120-180	700-1800	158KW	50-65KW
YHPEG-2000B	2000mm	80/65/65	32：1	140-200	700-1500	188KW	60-70KW
YHPEG-2500B	2500mm	85/70/70	32：1	180-250	500-1200	230KW	75-85KW
YHPEG-3000B	3000mm	100/85/85	32：1	260-305	500-1200	250KW	80-100KW
YHPEG-3500B	3500mm	110/95/95	32：1	300-280	500-1000	270KW	90-110KW

Product Description

Product Application

The main raw materials are LDPE and LLDPE particles.produce laminate kraft paper,EPE foam,PET aluminum plating bubble film,By changing the bubble mold roller,the diameter of bubble from 6-30mm,products are water proof,presure proof,antistic,insulation and so on.widely used in furniture,hard ware,building materials,electrics,courier and other packing industry.

Detailed Images

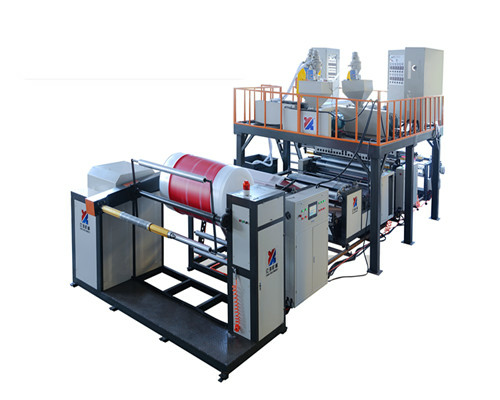

Machine

Name: 5 layers air bubble film machine
Brand: YIHAI
Original: Wenzhou city,zhejiang province,China

Details:products are used in water proof,presure proof,antistic,insulation and so on.widely used in furniture,hard ware,building materials,electrics,courier and other packing industry
